ESX QL800.6 – 6-Channel Class D Digital Amplifier
The ESX QL800.6 is a versatile 6-channel amplifier designed for high-performance audio systems. Built on advanced Class D technology, this compact amplifier delivers efficient power to a variety of speaker configurations. Ideal for use in 2- or 3-way systems, the QL800.6 maximizes audio output while maintaining low distortion, ultimately enhancing your in-car sound experience.
Key Features and Specifications
- 6-Channel Class D Digital Amplifier
- Output Power: 6 x 80/125 Watts RMS @ 4/2 Ω
- Bridged Output: 3 x 250 Watts RMS @ 4 Ω
- Dynamic Headroom Technology (DHR) enables up to 160 Watts RMS per channel
- High Pass Filter: 50-5000 Hz (CH1/2); 10-500 Hz (CH3/4 + CH5/6)
- Low Pass Filter: 50-5000 Hz (CH3/4 + CH5/6)
- Bandpass Function available for CH3/4 + CH5/6
- Compact dimensions: 254 x 47 x 170 mm
- Efficiency rating up to 90%
- Integrated Auto Turn-On Function with Start/Stop capability
- Heavy-duty aluminum heatsink and die-cast parts for durability

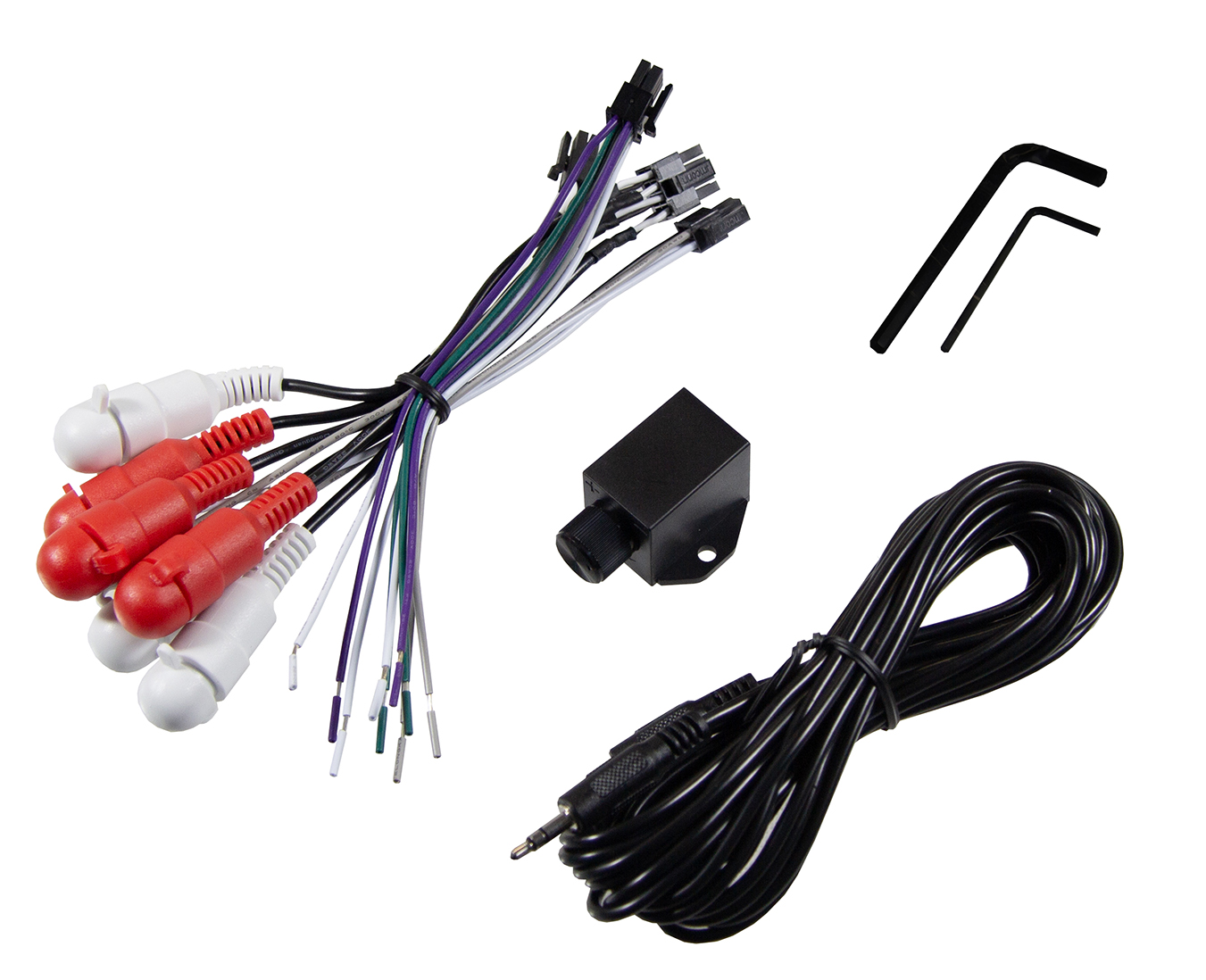

- Includes compact bass remote controller
